Cannondale Synapse

Cannondale Synapse

Categories:

Description

Real World Performance
Designed to go fast, built to go long, and made to keep you comfortable, the Synapse redefines road performance. With a lightweight frame featuring wind-tunnel-sculpted tubing and PB-blasting stiffness-to-weight, it’s a bike that’s ready for anything you demand of it. Just ask Lachlan Morton why he trusted it for his record-smashing lap of Australia. Unreal speed, engineered for real-world roads.​

Specs

Details

  • Platform

  • Model Name

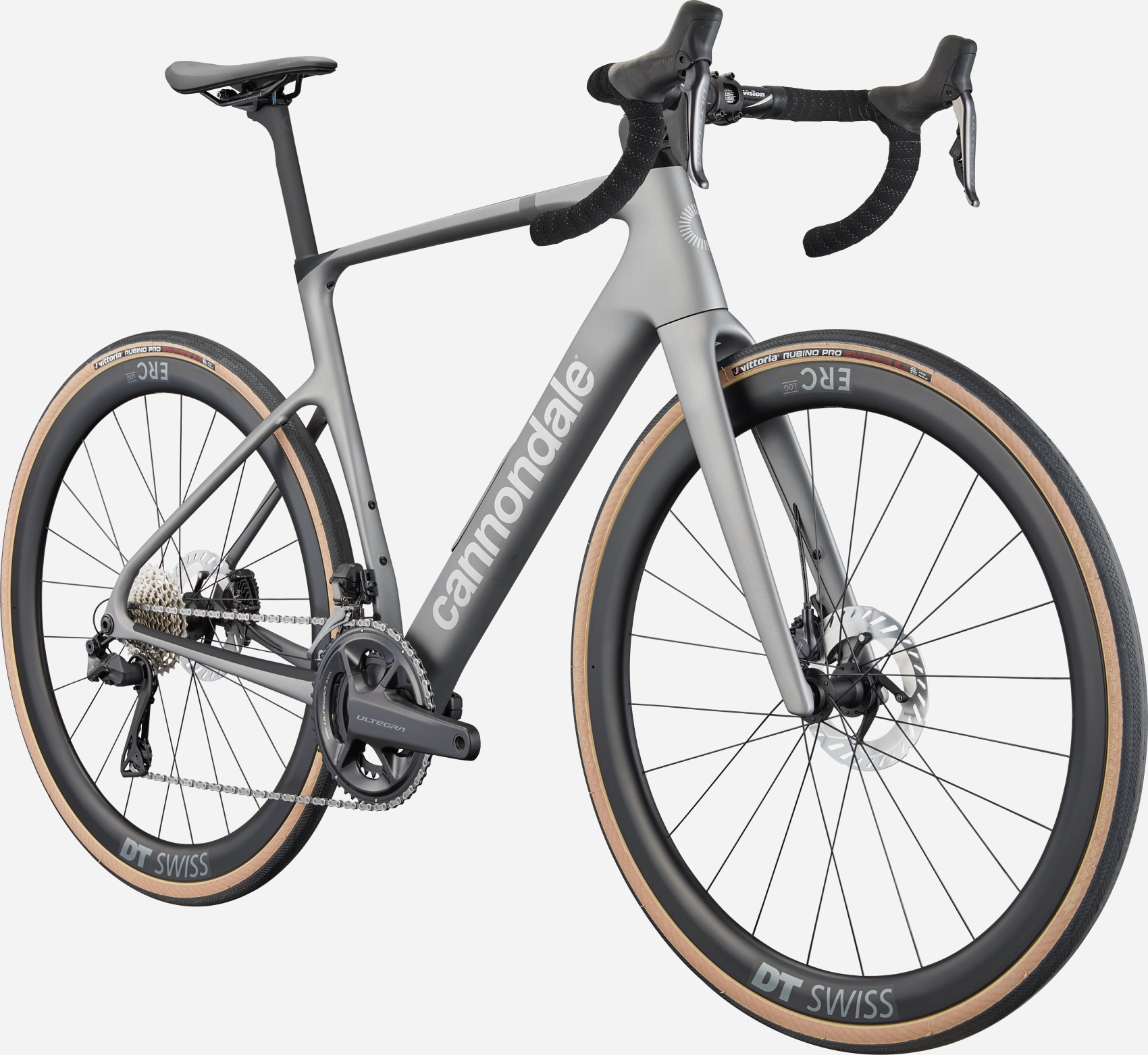

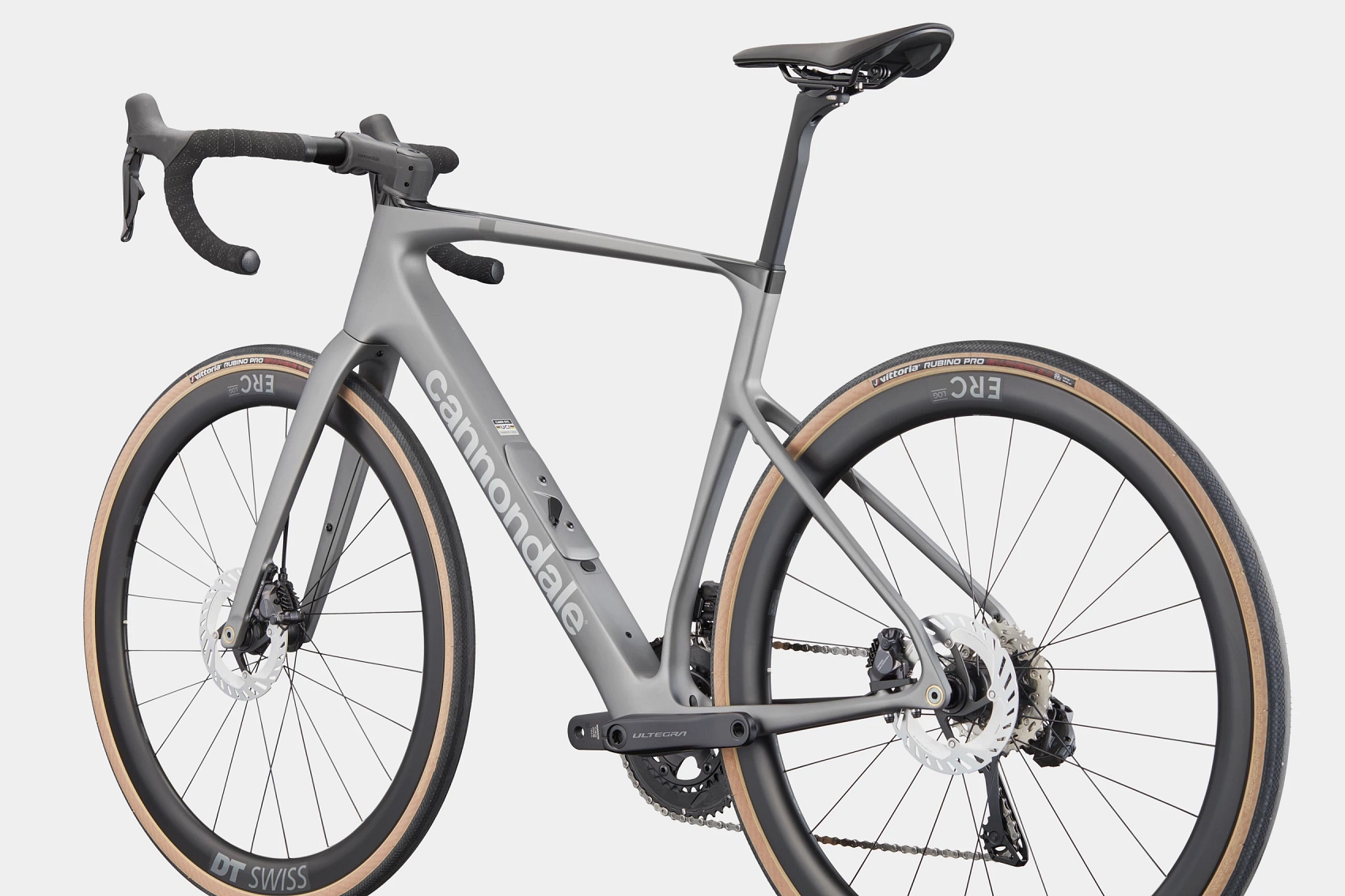

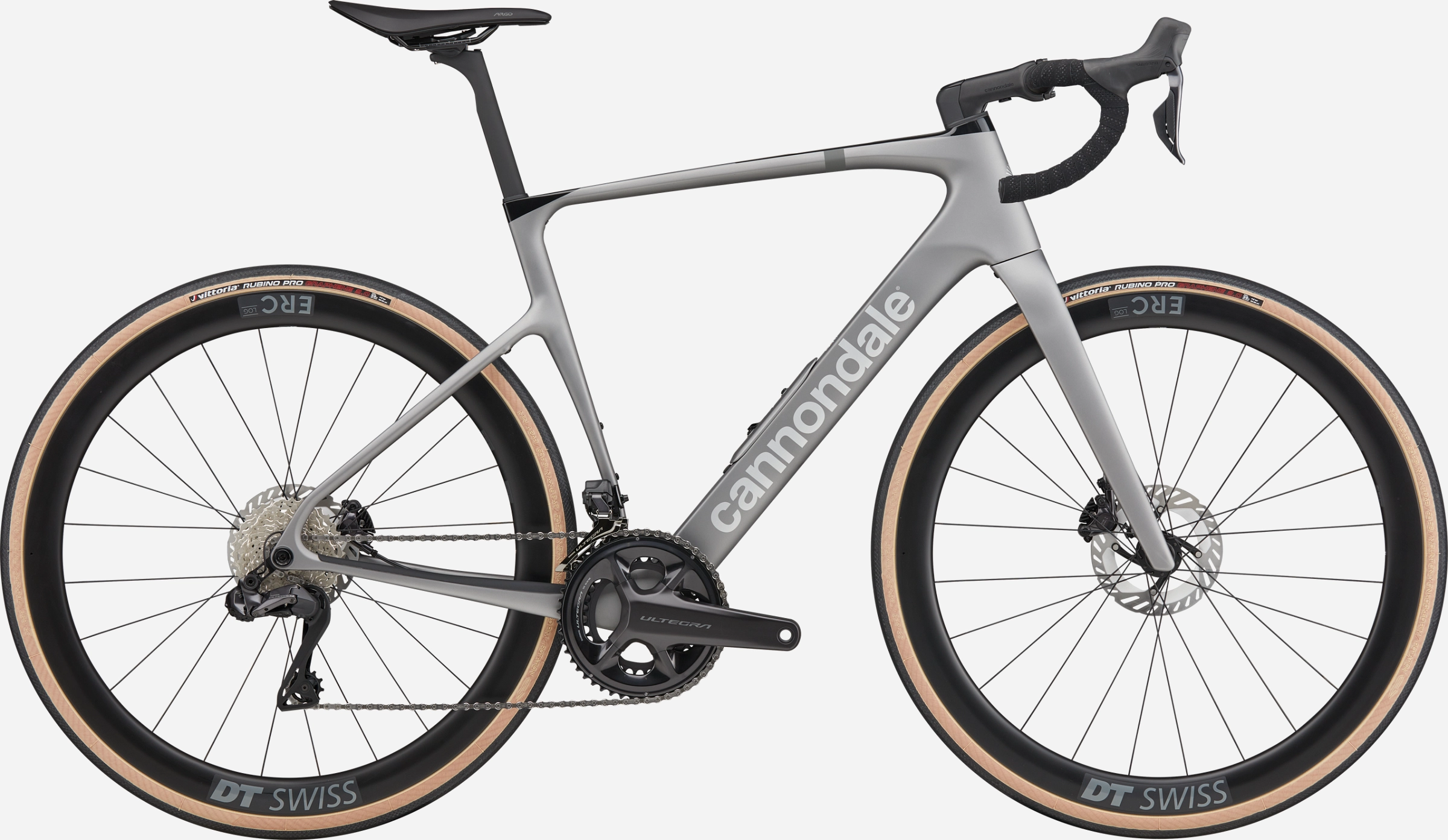

    Synapse Carbon 2
  • Model Code

    C12205U

Frameset

  • Frame

    Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12×142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts
  • Fork

    Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8″ to 1-1/5″ Delta steerer, 55mm offset, fender mounts
  • Headset

    Integrated, 1-1/8″ – 1-1/2″

Drivetrain

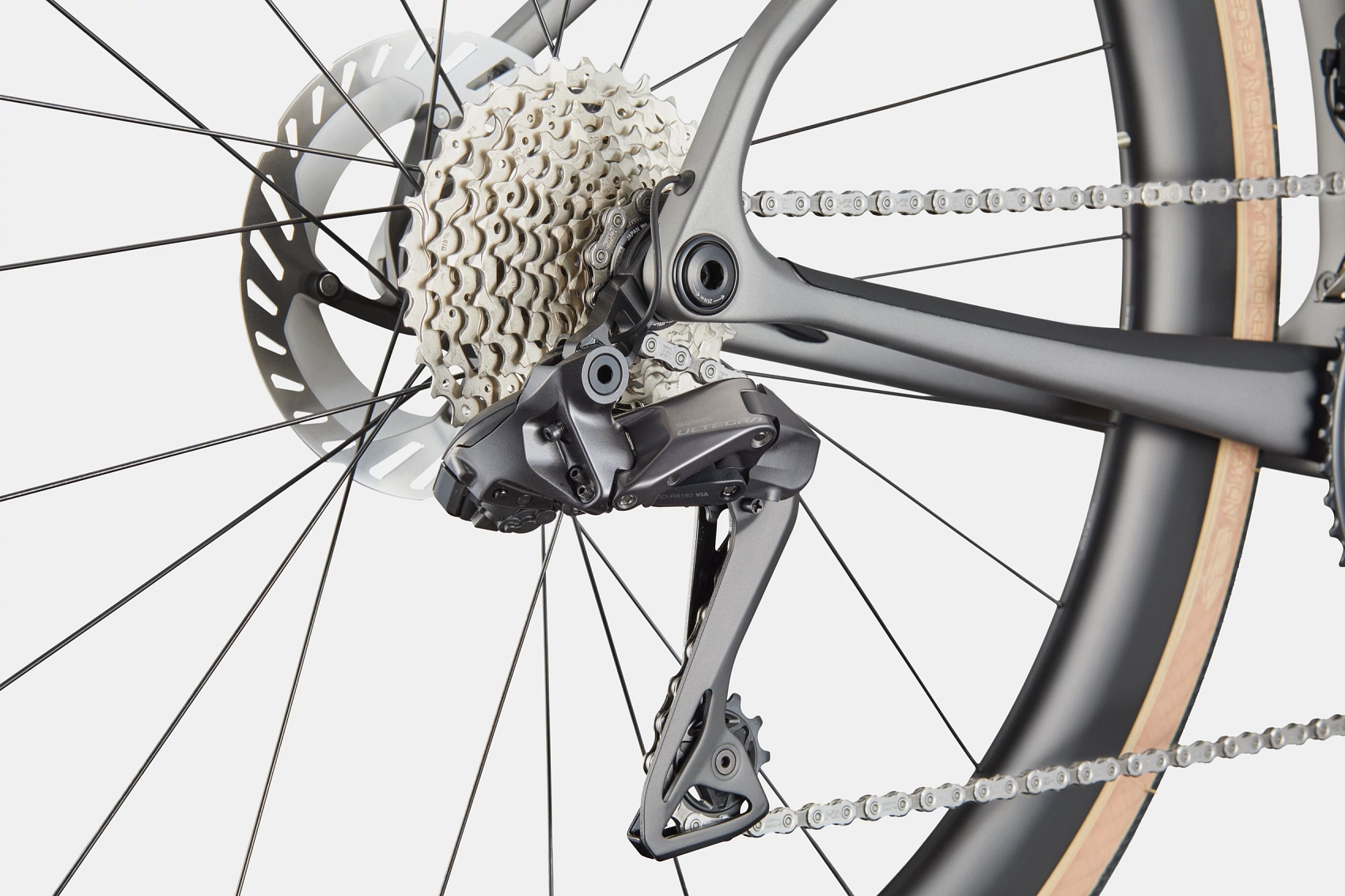

  • Rear Derailleur

    Shimano Ultegra Di2 R8150
  • Front Derailleur

    Shimano Ultegra Di2 R8150
  • Shifters

    Shimano Ultegra Di2 R8170, wireless, 12-speed
  • Chain

    Shimano Ultegra, 12-speed

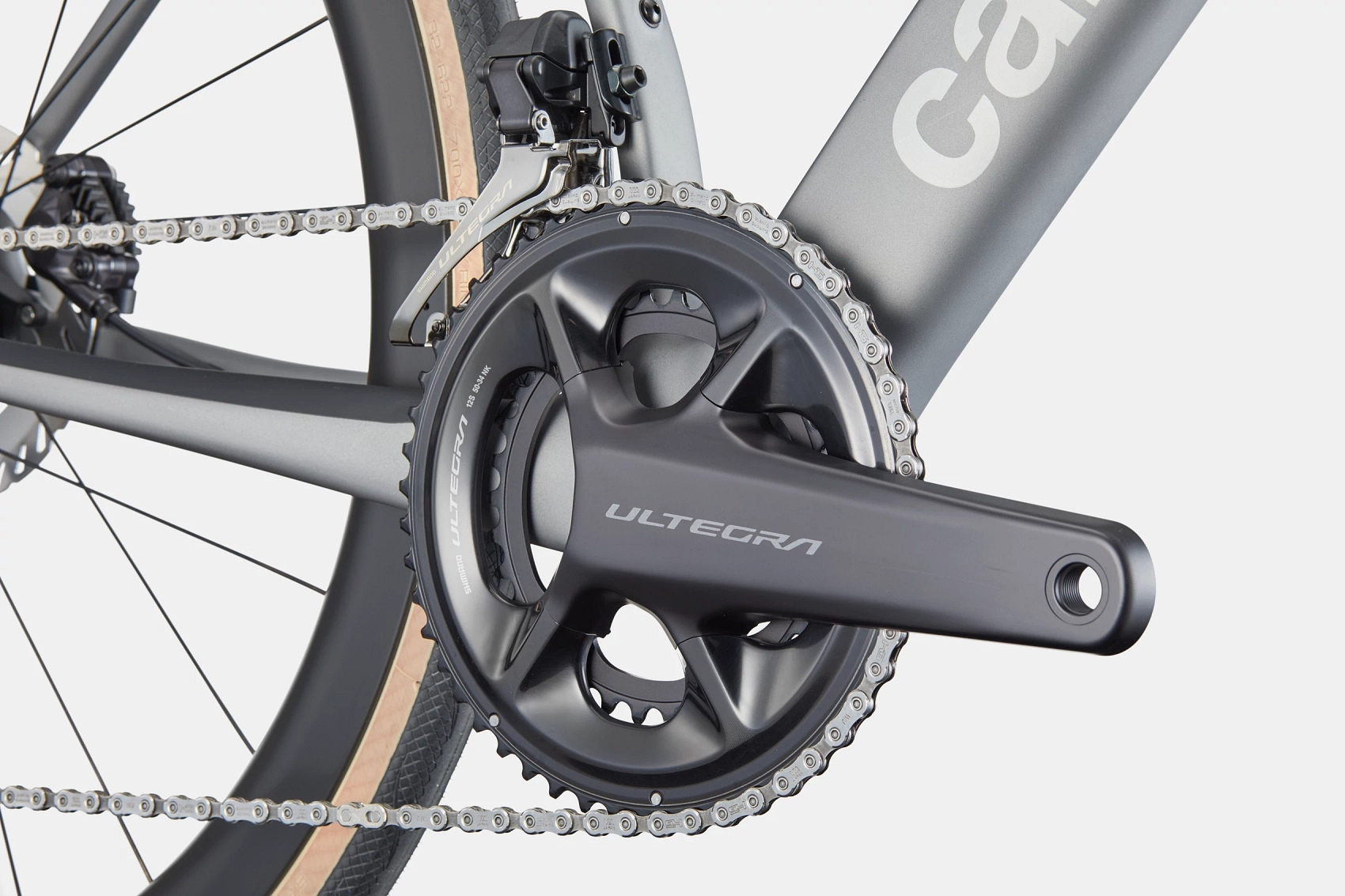

  • Crank

    Shimano Ultegra R8100, 50/34: 165mm (44cm), 170mm (48-51cm), 172.5 (54-56cm), 175mm (58-61)
  • Rear Cogs

    Shimano Ultegra R8100, 11-34, 12-speed
  • Bottom Bracket

    Shimano BSA 68

Brakes

  • Brakes

    Shimano Ultegra R8170, 160/160mm CL800 rotors
  • Brake Levers

    Shimano Ultegra Di2 R8170 hydraulic disc

Wheels

  • Rims

    DT Swiss ERC 45, carbon, 24mm inner width, 45mm depth, 24h, tubeless ready
  • Spokes

    DT Swiss Competition
  • Tire Size

    32
  • Wheel Size

    700
  • Hubs

    (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370 LN Ratchet System, 12x142mm centerlock
  • Tires

    Vittoria Rubino Pro IV, 700x32c

Components

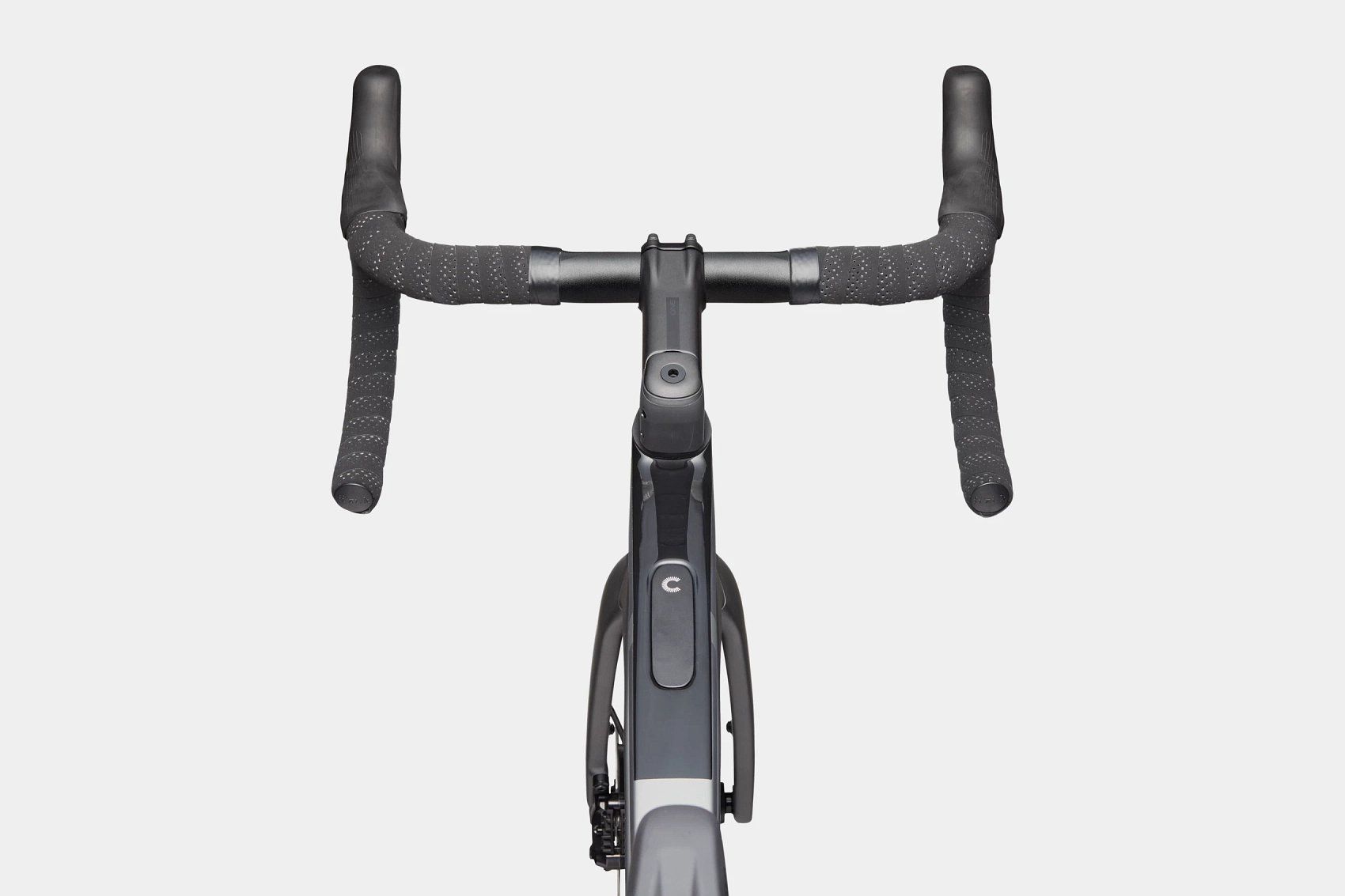

  • Handlebar

    Vision Trimax Aero Alloy: 400mm (44-51cm), 420mm (54-61cm)
  • Stem

    Cannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44-48m), 90mm (51cm), 100mm (54-56cm), 110mm (58-61cm)
  • Grips

    Fizik Tempo Bondcush Soft, 3mm
  • Saddle

    Fizik Vento Argo X5, 140mm
  • Seatpost

    Cannondale C1 Aero 27 Carbon, SmartSense compatible, 330mm length, 0mm offset (44-48cm), 15mm offset (51-61cm)

Extra

  • Extra 1

    Large StashBag downtube storage bag, tubeless valve
