Details

• Platform

  Habit

• Model Name

  Habit 4

• Model Code

  C23401U

Frameset

• Frame

  Habit SmartForm C1 Alloy, 130mm travel, Proportional Response Suspension and Geo, 55mm chainline, ISCG05, BSA threaded BB, post mount brake, tapered headtube, DirectLine internal cable routing, UDH hanger

• Fork

  RockShox Recon RL, 140mm, Solo Air, 15x110mm thru-axle, tapered steerer, 42mm offset

• Headset

  Integrated Sealed Bearing, Tapered

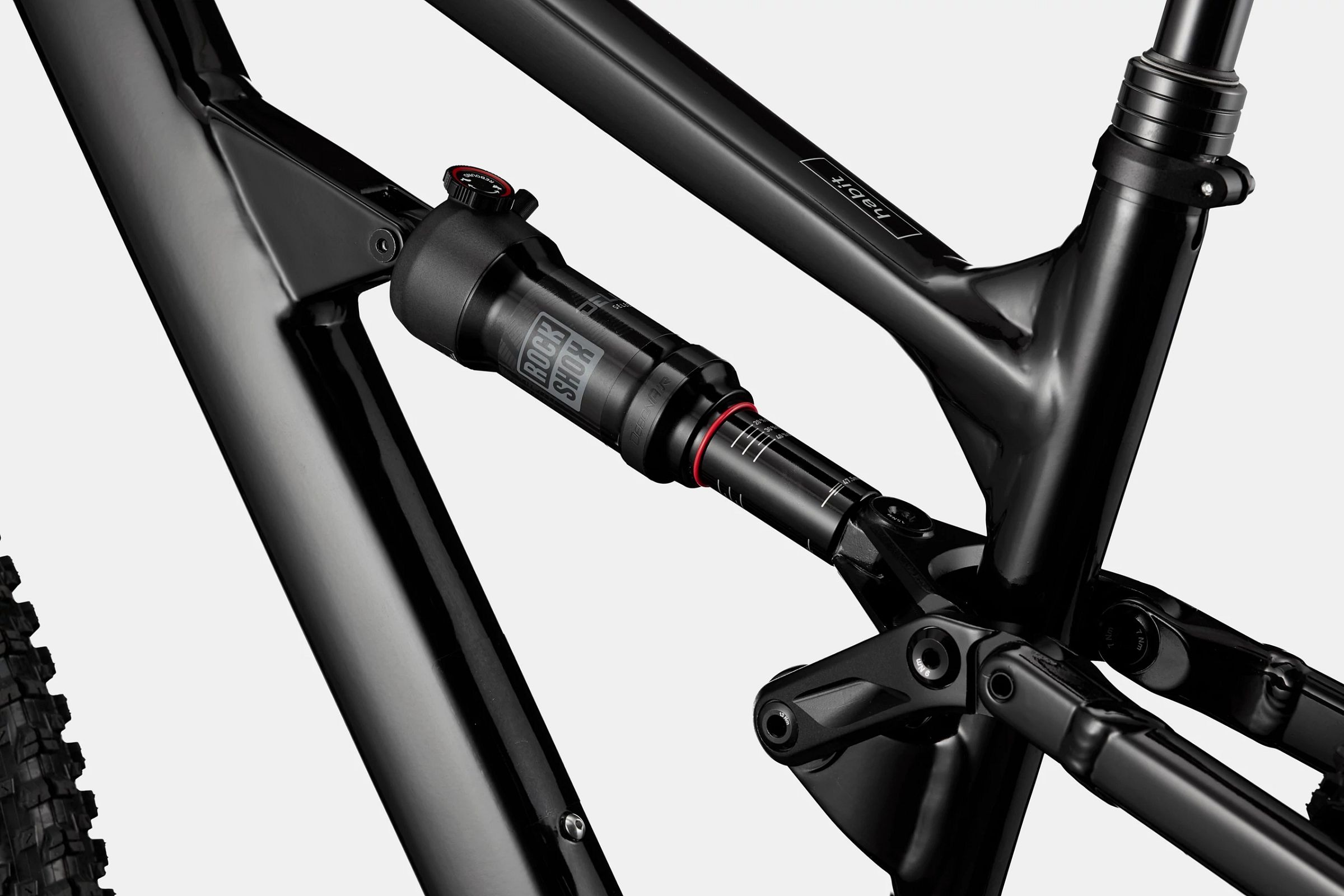

• Rear Shock

  RockShox Deluxe Select, DebonAir, adjustable rebound

Drivetrain

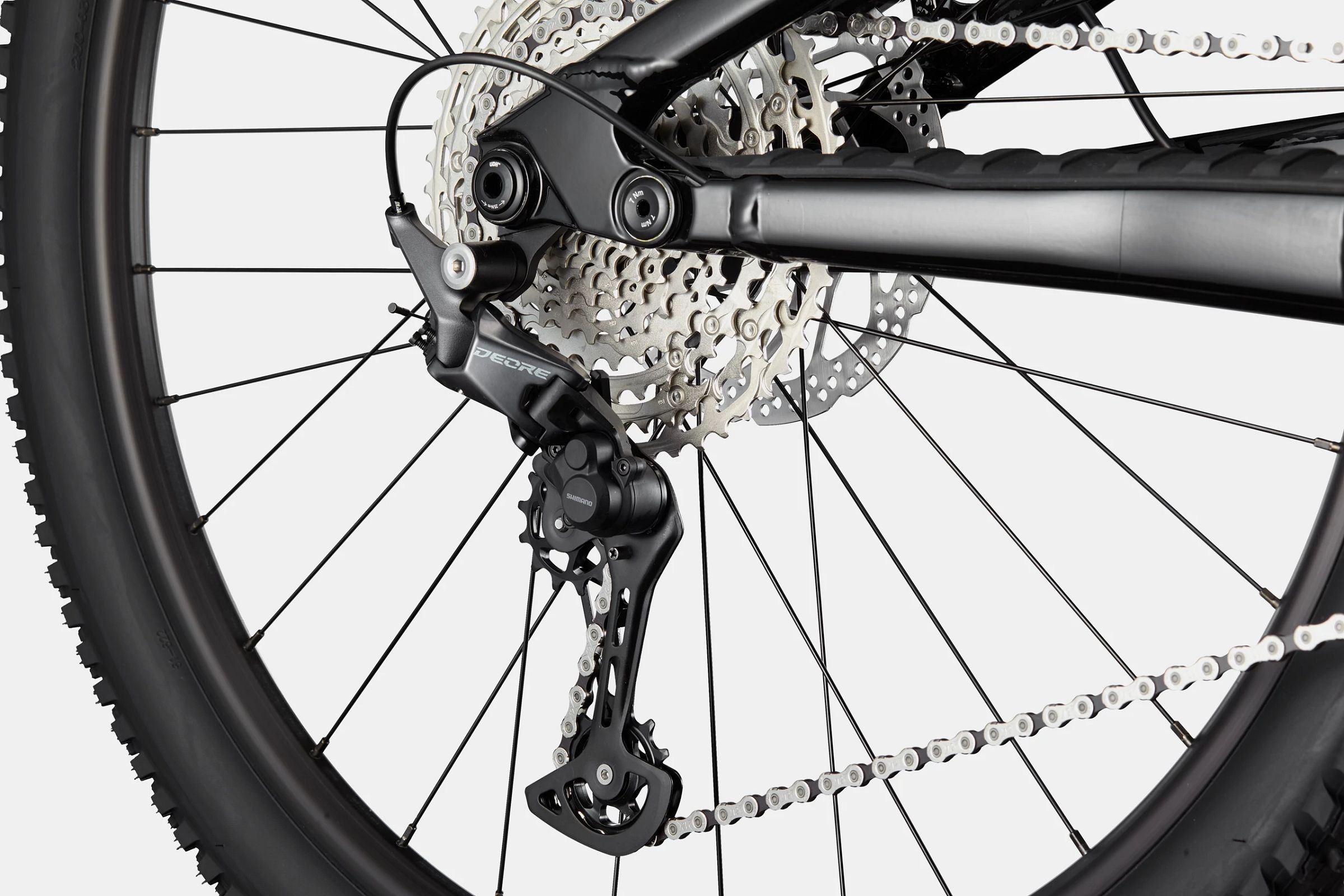

• Rear Derailleur

  Shimano Deore M6100

• Shifters

  Shimano Deore M6100, 12-speed

• Chain

  KMC X12, 12-speed

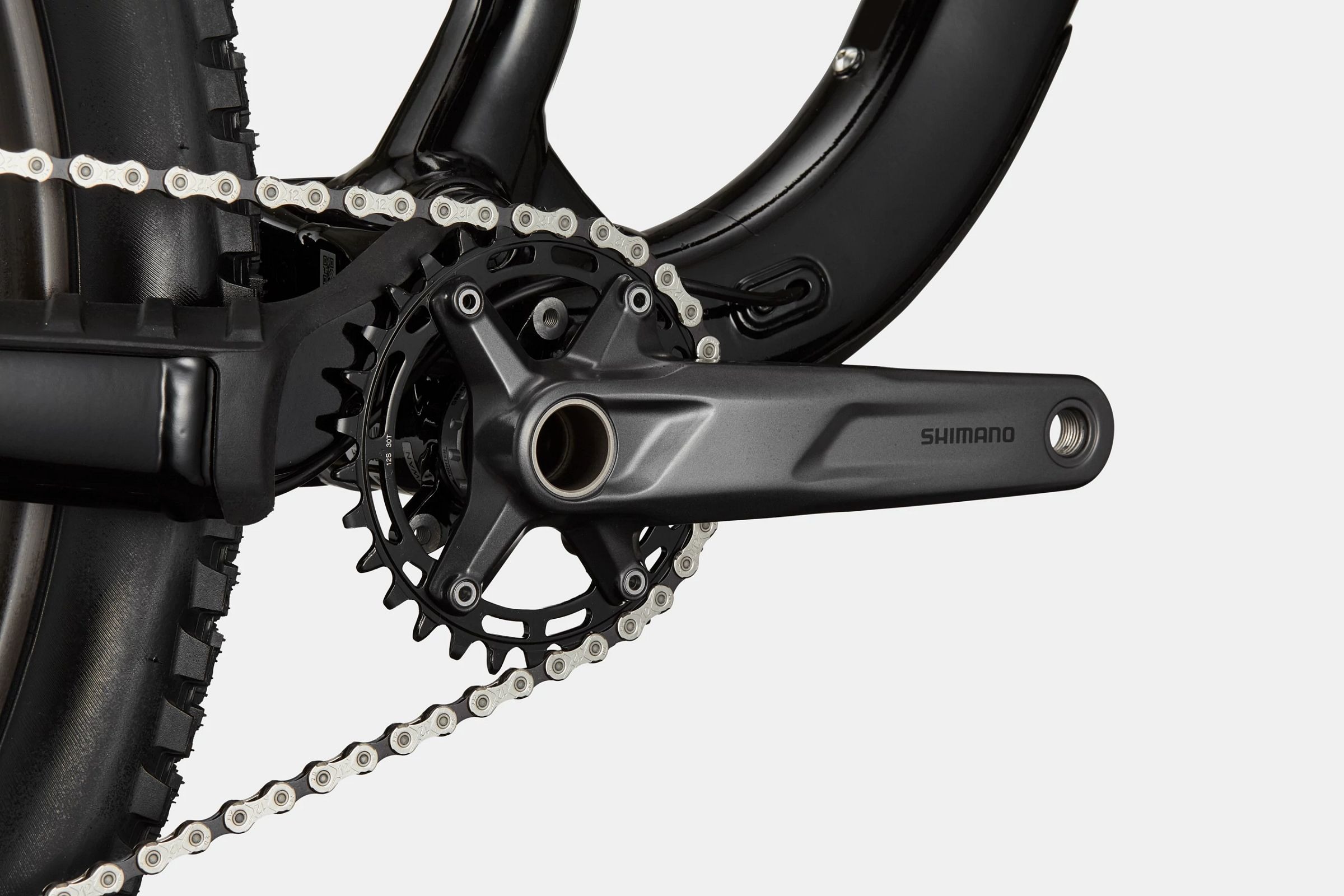

• Crank

  Shimano, FC-5121, 30T, 55mm chainline

• Rear Cogs

  Shimano Deore M6100, 11-51, 12-speed

• Bottom Bracket

  Shimano BSA 73

Brakes

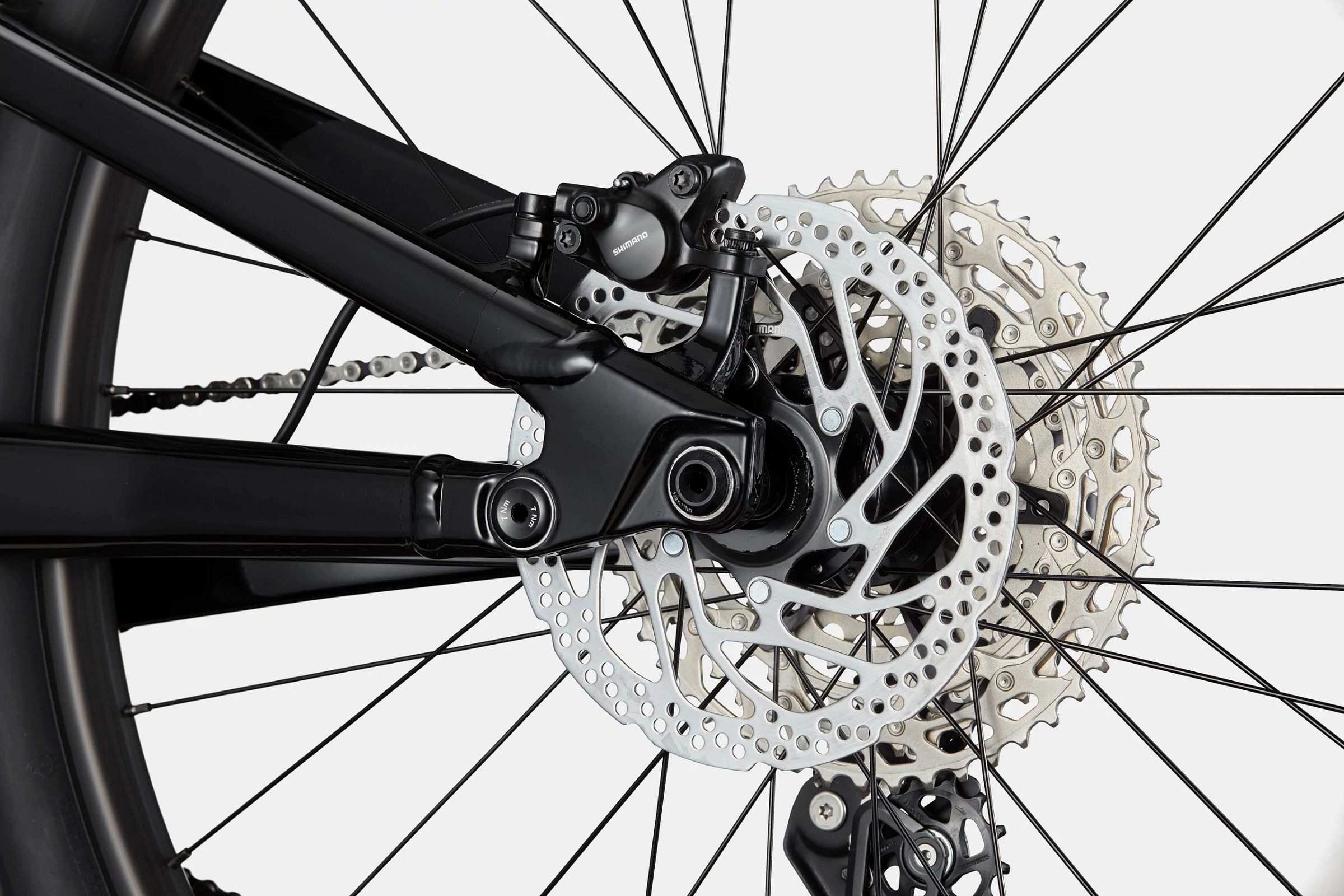

• Brakes

  Shimano MT200 hydraulic disc, 180/180mm RT30 rotors, centerlock

• Brake Levers

  Shimano MT200 hydraulic disc

Wheels

• Rims

  WTB STX i25 TCS, 32h, tubeless ready

• Spokes

  Stainless Steel, 14g

• Tire Size

  2.4

• Wheel Size

  29, 27.5 (XS)

• Hubs

  (F) Shimano MT400, 15x110mm thru-axle / (R) Shimano MT410, 12x148mm thru-axle

• Tires

  Maxxis Rekon, 29×2.4″ (27.5×2.4″ – XS), EXO

• Front Tire

  Maxxis Rekon, 29×2.4″ (27.5×2.4″ – XS), EXO

• Rear Tire

  Maxxis Rekon, 29×2.4″ (27.5×2.4″ – XS), EXO

Components

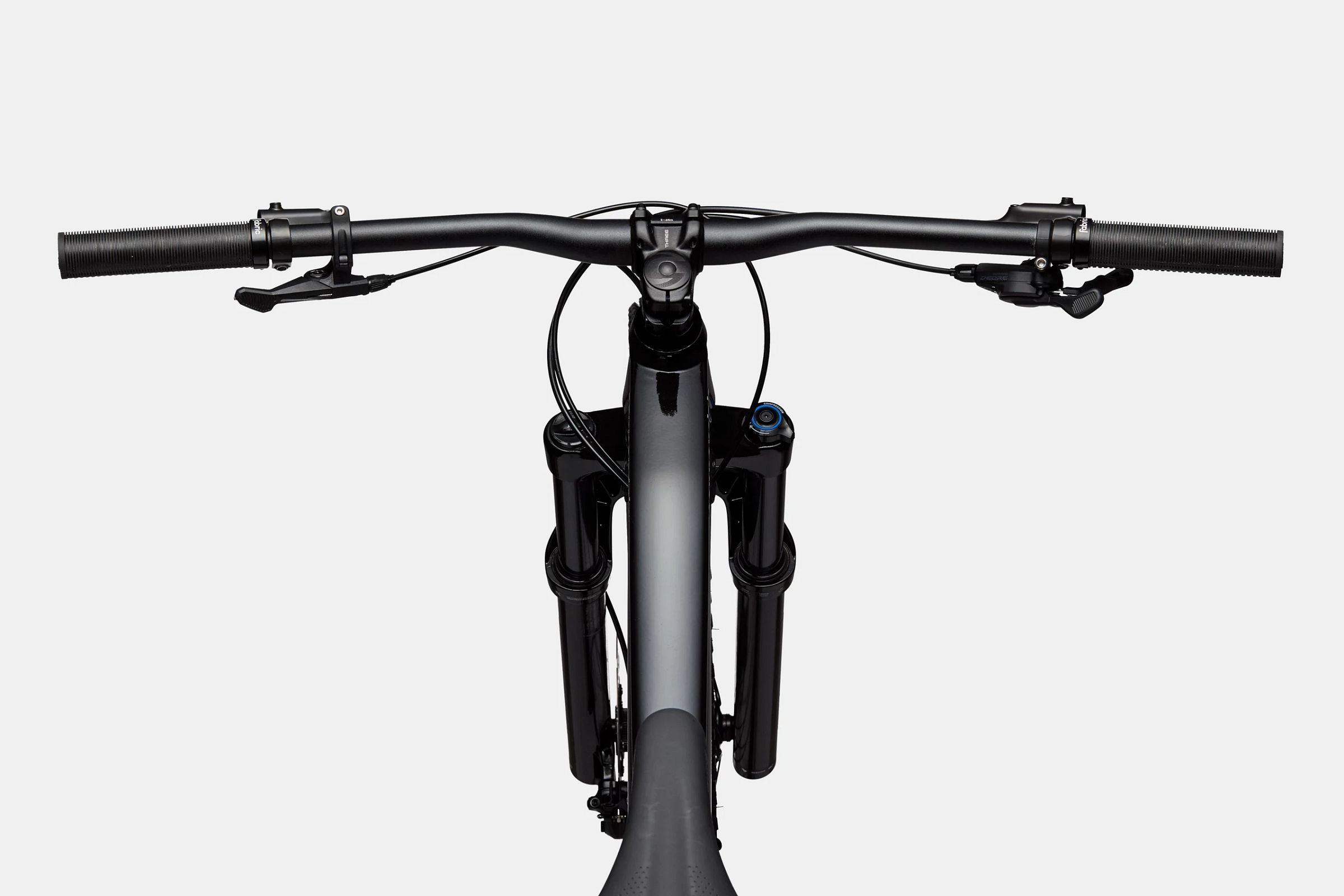

• Handlebar

  Cannondale 3 Riser, 6061 Alloy, 15mm rise, 8° sweep, 4° rise, 780mm

• Stem

  Cannondale 3, 6061 Alloy, 31.8, 0°

• Grips

  Cannondale Locking Grips

• Saddle

  Cannondale Ergo XC

• Seatpost

  TranzX dropper, internal routing, 31.6, 130mm (XS-S), 150mm (M-XL)
