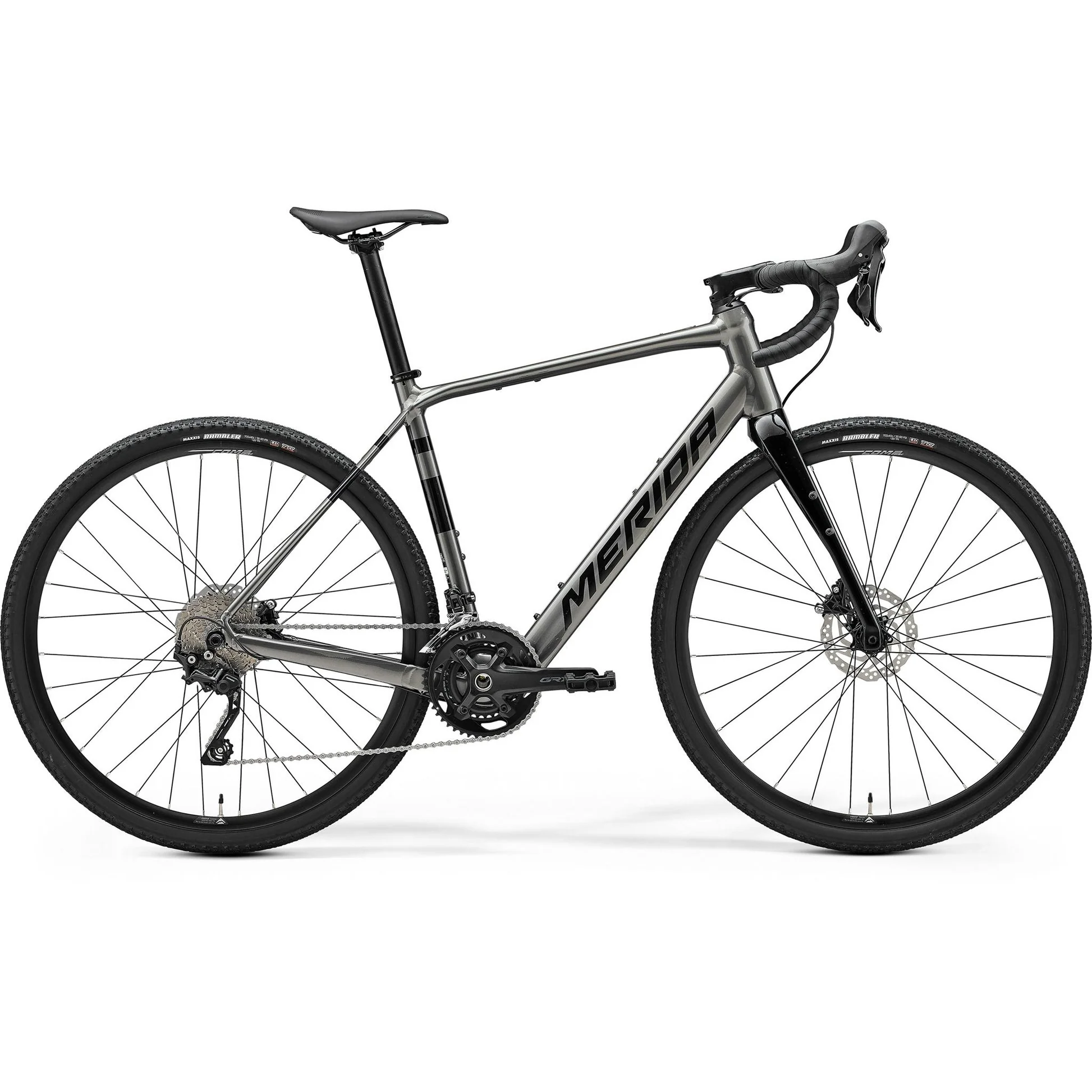

The Merida eSilex 400 Electric Gravel Bike in Gunmetal Grey/Black is designed for those who seek adventure on and off the beaten path. Equipped with a powerful 250W motor, it provides smooth and efficient pedal assistance, making climbs and long distances more manageable. The 250Wh battery ensures you can enjoy extended rides without worrying about running out of power. Its lightweight alloy frame paired with a carbon fork offers a perfect balance of durability and comfort. With the Shimano GRX400 groupset, you can expect precise and reliable shifting, while the hydraulic disc brakes deliver excellent stopping power in all conditions. This bike is perfect for gravel enthusiasts looking to explore new terrains with ease and confidence.
| SEASON | 2026 |
|---|---|
| AXLES | F: MERIDA EXPERT SL |
| BOTTOM BRACKET | Shimano RS501 BSA |
| BRAKES | F: Shimano GRX400; 2 piston | R: Shimano GRX400; 2 piston |
| CASSETTE | Shimano CS-HG50; 11-36 ATC; 10 GER |
| CHAIN | KMC e10 |
| COLOUR | GUNMETAL GREY(BLACK) |
| CRANKSET | Shimano GRX600; 46-30 ATC; 170 mm-XS/S/SM/ML, 175 mm-L/XL |
| DERAILLEUR FRONT | Shimano GRX400 |
| DERAILLEUR REAR | Shimano GRX400 |
| FORK | MERIDA SILEX CF2; carbon; max. 700x42C / 700x35C (with fender) / max. 50x650B WHS |
| FRAME | eSPEEDER LITE III; MAT aluminium; 700x45C / 700x42C (with fender) / 27,5x47C max. WHS; 100×9/135×9 AST; BSA BBR |
| GRIP | MERIDA ROAD EXPERT |
| HANDLEBAR | MERIDA EXPERT GRII; MAT aluminium; 400mm (XS-S) , 420mm (M) , 440mm (L/XL) |
| HANDLEBAR STEM | MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD; 80 mm all sizes |
| HEADSET | MERIDA 8158 |
| HUBS | F: Shimano HB-TC500; 100×12 WHF; 28 SPH; Centerlock |
| LIGHT(S) | F: CG-119PG-BLACK(1) | R: CG-404RG-BLK |
| PEDALS | VP VPE-891 |
| RIM | MERIDA COMP SL; 17 IWR; 22 HRI; MAT aluminium |
| ROTOR FRONT | Shimano RT10; 160 mm |
| ROTOR REAR | Shimano RT26; 160 mm |
| SADDLE | MERIDA COMP SL; V-mount |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA EXPERT; MAT aluminium; 30.9 DSP; 0 SSB |
| SPOKES | Black stainless ; black nipples |
| TYRES | F: Maxxis Rambler; 700Cx40; fold; EXO | R: Maxxis Rambler; 700Cx40; fold; EXO |
| MOTOR/DRIVE UNIT | Mahle X30 Drive Unit; 25KPH |
| MOTOR BRAND | Mahle |
| MOTOR MODEL | X30 |
| MOTOR POWER (WATTS) | 250 |
| MOTOR TORQUE (NM) | 45 |
| BATTERY | Mahle ix250Wh Battery Pack; 250Wh |
| BATTERY BRAND | Mahle |
| BATTERY MODEL | ix250Wh |
| BATTERY SIZE (WATT-HOURS) | 250 |
| EBIKE DRIVE SYSTEM | Rear Wheel |
